Heavy Duty Trailer Jockey Wholesale | Jockey Assembly with Swivel Wheel | Custom Jockey Wheel Parts
- group name
- Trailer Jockey Wheels
- Min Order
- 200 piece
- brand name
- Haway Trailer Parts Manufacturer
- model
- Custom
- Nearest port for product export
- Qingdao
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, DDP, DDU
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal
- update time
- Thu, 26 Dec 2024 20:23:39 GMT
Paramtents
Usage trailer parts
Surface Finish Hot Dip Galvanized or zinc plating
Tube size φ48mm
Capacity 1500 LBS
Wheel Size 8''
MOQ 200
Packging & Delivery
-
Min Order200 piece
Briefing

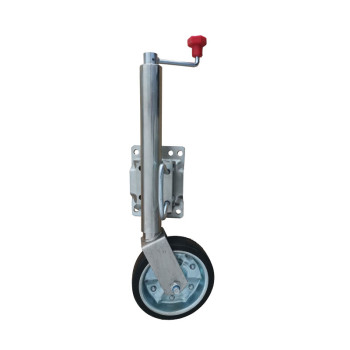

The capacity of the heavy duty trailer jockey swivel wheel is 1500 LBS. It is assembly with 8 inch rubber wheel or plastic wheel.
Detailed
Heavy Duty Trailer Jockey Wholesale | Assembly with Swivel Wheel
SPECIFICATION
| Capacity | Wheel Size | Retracted Height | Extended Height | Tube Size | Surface Treatment |
|---|---|---|---|---|---|
| 350LBS | 8'' rubber wheel | 600mm | 830mm | φ48mm | Zinc Plating |
| 350LBS | 8'' rubber wheel | 520mm | 750mm | φ48mm | Zinc Plating |
| 750LBS | 6'' plastic wheel | 600mm | 830mm | φ51mm | Zinc Plating |
| 1500LBS | 8'' rubber wheel | 640mm | 870mm | φ50mm | Zinc Plating |
| 1500LBS | 8'' plastic wheel | 730mm | 960mm | φ51mm | Zinc Plating |
| 1500LBS | 8'' plastic wheel | 620mm | 880mm | φ48mm | Hot Dip Galvanized |
| 1500LBS | 8'' rubber wheel | 620mm | 880mm | φ48mm | Zinc Plating |
| 2000LBS | 2 x 6'' plastic wheel | 600mm | 860mm | φ57mm | Zinc Plating |
FEATURES
- The Trailer Jockey Wheel with capacity of 1500LBS is used on caravan and other heavy duty trailers.
- Retracted height of this Trailer Jockey Wheel is 620mm, Extended height is880mm travel 260mm. Surface finish of Trailer Jockey Wheel is zinc plating or hot dip galvanizing.
- 8 inch rubber wheel and plastic wheel for option.
- Outside tube of Trailer Jockey Wheel is φ48mm and inside tube is φ42mm.
- There are 8 holes on the mounting bracket. It make it possible to used on different sizes of trailer tongue.
- The biggest feature is swivel design. Just pull the handle and it can go in and locks jack into position whether we've got it in the upright or in the stored position.
