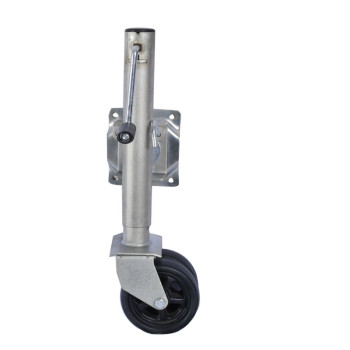

Swivel Jockey Wheel Side Wind For Caravan Heavy Duty
- group name
- Trailer Jockey Wheels
- Min Order
- 200 piece
- brand name
- Haway Trailer Parts Manufacturer
- model
- Custom
- Nearest port for product export
- Qingdao
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, DDP, DDU
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal
- update time
- Thu, 21 Nov 2024 17:30:35 GMT
Paramtents
Usage trailer parts
Surface Finish Hot Dip Galvanized or zinc plating
Tube size φ58mm
Capacity 1500 LBS
Wheel Size 8''
MOQ 200
Packging & Delivery
-
Min Order200 piece
Briefing
This heavy duty jockey wheel is side wind with 8 inch wheel. Maximum capacity is 2000 LBS.
Detailed
- Swivel Jockey Wheel Side Wind For Caravan Heavy Duty
- SPECIFICATION
| Capacity | Wheel Size | Retracted Height | Extended Height | Tube Size | Surface Treatment |
|---|---|---|---|---|---|
| 350LBS | 8'' rubber wheel | 600mm | 830mm | φ48mm | Zinc Plating |
| 350LBS | 8'' rubber wheel | 520mm | 750mm | φ48mm | Zinc Plating |
| 750LBS | 6'' plastic wheel | 600mm | 830mm | φ51mm | Zinc Plating |
| 1500LBS | 8'' rubber wheel | 640mm | 870mm | φ50mm | Zinc Plating |
| 1500LBS | 8'' plastic wheel | 730mm | 960mm | φ51mm | Zinc Plating |
| 1500LBS | 8'' plastic wheel | 620mm | 880mm | φ48mm | Hot Dip Galvanized |
| 1500LBS | 8'' rubber wheel | 620mm | 880mm | φ48mm | Zinc Plating |
| 2000LBS | 2 x 6'' plastic wheel | 600mm | 860mm | φ57mm | Zinc Plating |
FEATURES
- The heavy duty jockey wheel is made of sturdy steel material. Outside tube is φ58mm and inside tube is φ52mm with 8'' plastic wheel.
- It can be used on heavy duty trailers like boat trailer, utility trailer, caravan etc.
- The inner tube rotates so the wheel can have a 360 degrees rotation in any condition.
- Swivel design allows you to make jockey wheel down for use and parallel to the trailer for storage.
- Just pull the handle and it can go in and locks jack into position whether we've got it in the upright or in the stored position.
- There are 4 holes on each side of mounting bracket. They can suit tongue size of 50mm, 75mm and 100mm.
- This is jockey wheel is for heavy duty trailers. We also make jockey wheels for light duty trailers, which capacity is 500LBS, 750LBS and 1000LBS.
- The jockey wheel can be zinc plating surface finish or hot dip galvanized surface finish. Hot Dip galvanized jockey wheels are mainly used on boat trailers.
