Half Torsion Axle Kits Wholesale | Independent Suspension Half Torsion Axle Kits
- group name
- Torsion Trailer Axles
- Min Order
- 20 piece
- brand name
- Haway Trailer Parts Manufacturer
- model
- custom
- Nearest port for product export
- Qingdao
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, DDP, DDU
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal
- update time
- Fri, 27 Dec 2024 00:30:01 GMT
Paramtents
Capacity 2200lbs - 8000lbs
MOQ 20 kits
Surface Finish powder coating or galvanized
Brake Option
Packging & Delivery
-
Min Order20 piece
Briefing

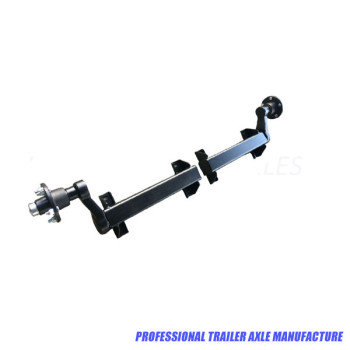

We supply Half Torsion Axle Kits. Independent Suspension, Torsion axle suspension capacity is 1000 lb - 7000 lb.
Detailed
What Kind Of Half Torsion Axle We Can Supply
|
Weight Capacity
|
Beam Size
|
Bolt Pattern |
Brake
|
Angle
|
Surface Treatment |
|
1500 lbs
|
60x60mm
|
4-4'' or 5- 4.5'' |
No Brake
|
45° up-45° down (customized)
|
Black Painted or Hot Dip Galvanizing |
|
2200 lbs
|
60x60mm
|
5-4.5'' |
No Brake
|
45° up-45° down (customized)
|
Black Painted or Hot Dip Galvanizing |
3500lbs | 65x65mm | 5-4.5'' | Option (Electric or Hydraulic brake) | 45° up-45° down (customized) | Black Painted or Hot Dip Galvanizing |
6000lbs | 80x80mm | 6-5.5'' | Option (Electric or Hydraulic brake) | 45° up-45° down (customized) | Black Painted or Hot Dip Galvanizing |
7000lbs | 90x90mm | 8-6.5' | Option (Electric or Hydraulic brake) | 45° up-45° down (customized) | Black Painted or Hot Dip Galvanizing |
Features Of Half Torsion Axle
A half torsion axle is a variation of the standard torsion axle design that offers a more compact and flexible suspension system. It is typically used in lighter-duty trailers or applications where space and weight are critical.
As a half torsion axle manufacturer we made a short summary of half torsion axle features.
1.Smaller Profile: The half torsion axle is designed to be more compact than a full torsion axle, making it ideal for smaller trailers or trailers with limited space.
2.Reduced Weight: Due to its smaller size and construction, it tends to be lighter than full torsion axles, contributing to an overall reduction in the trailer’s weight.
3.Independent Suspension: Each wheel has independent suspension, meaning that movement or impact on one side of the trailer does not affect the opposite side. This can improve handling and ride quality.
4.Improved Load Distribution: Independent suspension helps in even load distribution across the trailer, enhancing stability and comfort.
5.Simpler Setup: Half torsion axles are relatively easy to install compared to traditional axles with leaf spring systems. The compact design often makes them easier to fit into a variety of trailer frames, reducing installation time and cost.
6.Lower Initial Cost: Due to their simplicity and smaller size, half torsion axles can be more affordable than full torsion or leaf spring axles, especially for lighter-duty applications.
Which Kind Of Trailer Can Use Half Torsion Axle
1. Utility Trailers
These trailers often carry lighter loads and benefit from the smooth ride quality and lower maintenance provided by half torsion axles. Their smaller, compact design is well-suited to the limited space in utility trailer frames.
3. Boat Trailers
The smooth suspension and maintenance-free nature of half torsion axles are ideal for boat trailers, especially since they often need to be submerged in water. Half torsion axles also provide increased ground clearance and a stable ride when launching or retrieving boats.
5. ATV/UTV Trailers
The half torsion axle’s independent suspension and compact design make it a good fit for trailers carrying off-road vehicles, offering a smooth, stable ride and the ability to handle rougher terrains while keeping the trailer light and easy to maneuver.
2. Motorcycle Trailers
These trailers are relatively lightweight and have low weight capacity requirements. Half torsion axles provide a smooth ride for delicate motorcycles and minimize the need for maintenance, which is especially important for trailers that are used infrequently.
4. Golf Cart Trailers
These trailers are often lightweight, and half torsion axles are well-suited to this type of application due to their low-profile, independent suspension, and smooth ride—important for transporting delicate vehicles like golf carts.
6. Snowmobile Trailers
Snowmobile trailers need to provide a smooth ride while navigating rough or icy terrain. Half torsion axles deliver an independent suspension that can absorb the shocks from uneven surfaces, making them ideal for this purpose.
Why Half Torsion Axles are Ideal for These Trailers:
Lightweight: Half torsion axles are lighter than full torsion or leaf spring axles, making them ideal for lighter-duty trailers.
Compact Design: The small footprint of half torsion axles allows for easier installation and a more efficient use of trailer space.
Maintenance-Free: With no springs, shackles, or other moving parts, half torsion axles require less upkeep, making them convenient for trailers that are used occasionally or for long periods without frequent service.
Independent Suspension: This feature improves ride quality by absorbing shocks independently on each wheel, making it suitable for trailers carrying delicate cargo, such as boats, motorcycles, or equipment.
Corrosion Resistance: Many half torsion axles are built to resist rust and corrosion, making them ideal for trailers used in wet environments like boat trailers or those exposed to salty conditions.
