2200 lb Torsion Trailer Axle Wholesale
- group name
- Torsion Trailer Axles
- Min Order
- 50 piece
- brand name
- Haway Trailer Parts Manufacturer
- model
- 2200 lbs
- Nearest port for product export
- Qingdao
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, DDP, DDU
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal
- update time
- Fri, 27 Mar 2026 21:32:13 GMT
Paramtents
Capacity 2200 lbs
MOQ 50
Surface Finish black painted or Galvanizing
Brake without brake
Hub idler hub
bolt pattern 4 bolts on 4.5'' or 5 on 4.5''
Packging & Delivery
-
Min Order50 piece
Briefing

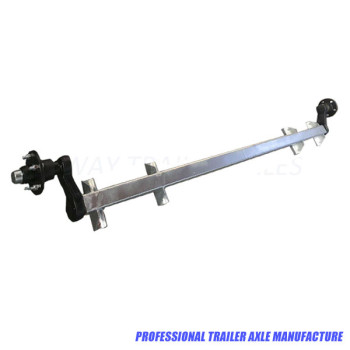

2200 lbs rubber torsion trailer axle with idler hub. Bolt pattern is 4 bolts on 4.5'' or 5 bolts on 4.5''
Detailed
2200 lb Torsion Trailer Axle Wholesale
Deatails of 2200 lb Torsion Axle
| Items | Specifications |
| ● Weight capacity: | 2200 lbs |
| ● Axle beam size: | 60 x 60mm square tube |
● Hub Face Distance: | 79'', 83'', 85'' or custom length |
● Spindle: | φ45mm spindle |
● Mounting bracket type: | can be customized |
● Starting angle: | 45°up- 45°down (customized) |
● Hub: | idler hub |
● Bolt pattern: | 5 bolts on 4.5'' or 4 bolts on 4.5'' |
● Brake: | usually no brake (can be with brake too) |
● Inner bearing: | L68149/11 |
● Outer bearing: | L44649/10 |
● Dust cam diameter: | 50.3mm |
● Grease nipple: | option |
● Surface finish: | black painted |
| ● Brake mounting flange: | with 5 holes (option) |
Features of 2200lbs Small Torsion Axle
1. 2200 lbs capacity torsion axle is designed to handle a load of up to 2200 pounds. This weight capacity is ideal for smaller to medium-sized trailers, including those used for light-to-medium duty cargo, vehicles, or recreational items.
2. The small 2000 lb torsion axle beam are made of strong 60 x 60 mm square tube.
3. 2200lbs Torsion Axle come in different sizes and configurations to match various trailer types. For example, the 2200 lbs torsion axle can be paired with single or double axles for varying needs.
4. The 2200lbs torsion axle can be fully hot dip galvanizing surface treatment to provide a corrosion-resistant coating.
About The Manufacturer - Haway
1.Haway, the torsion axle manufacturer choose right and good material based on strength, weight, corrosion resistance.Suitable materials for axle must be high-strength steel, rubber compounds for the torsion bars, and corrosion-resistant coatings (galvanized or powder-coated) for longevity.
2.Other Components include mounting brackets, bushings, bolts and nuts. These components can be customized based on different market and customer’s requirement.
3.As torsion axle Manufacturer we can offer custom axle sizes, weight capacities, and configurations (single or dual axles) to meet specific trailer requirements, including specialized applications like boat, RV, or utility trailers.
4.We do tests on each kind of axle, including load, shock absorption, and functional tests, to ensure they meet or exceed safety standards.
